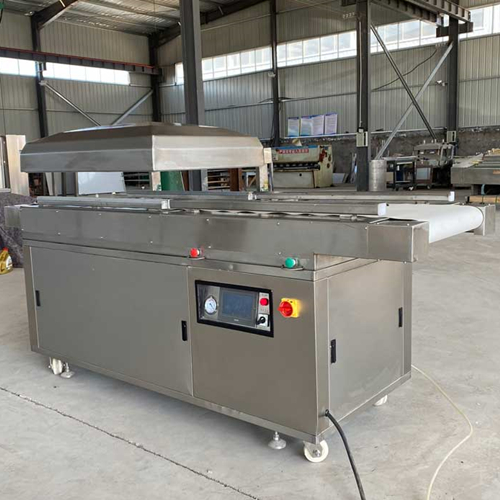

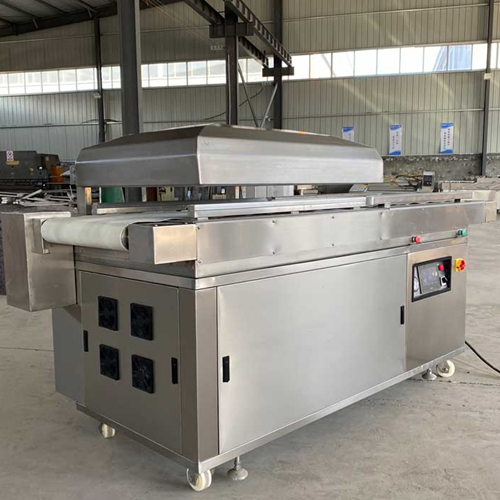

This single chamber belt vacuum machine is suitable for production of vacuum bags products with vacuum process. It is especially suitable for large volume product packaging, very convenient with subsequent processing such as hot water shrink machine, belt conveyor line matching, can greatly improve the packaging efficiency of products in meat specially.
Machine Parameter:
1, Useful sealing length: 1000/1100mm
2, Useful central distance between two bars: 650mm
3, Standard distance from bottom sealing bar and loading plane: 45mm
4, Standard depth of vacuum chamber: 200 mm (Effective packing thickness not less than 150mm)
5, Equip 200/300 m³/h vacuum pump
6, Machine Size: 2700(1000 type reduce 100mm)x1050x950 mm (Lift up to 1500 with external controller)
7, Vacuum chamber size: 1200(1000 type reduce 100mm) x 750 x 200 mm
Main Confirguration:
1, the frame of the machine is made of square tube steel and all external surface use SUS304 stainless steel, ensure the strength and durability of the whole machine.
2, the vacuum workroom adopts SUS304 stainless steel plate with thickness of 6mm and adopts reinforced structure to ensure that the workroom will not deform during the long period of use. Other plates are made of SUS304 stainless steel, and the control box can be independent heightening (optional and should tell the manufacturer in advance), adopts waterproof structure to prevent water from entering the box during possible cleaning.
3, the belt conveyor system adopts tensioning mechanism and guarantee belt is completely smooth when it is rolling.
4, the vacuum system adopts 200m³/h (300m³/h optional but need extra charge) vacuum pump. Stable performance, and effectively reduce noise pollution, vacuum pipeline control using 50mm large diameter gas control valve, to eliminate the high-power solenoid valve prone to failure.
5, adopt special Industrial PLC for machine management – DELTA PLC to control, ensure high precision and stability. The whole machine has the function of phase sequence protection to prevent the motor fault caused by wiring errors. Each motor contactor is equipped with a thermal protector to strengthen the protection of the motor.
6, the vacuum room lifting system adopts vertical lifting mode and use reducer instead of common air cylinder, no need extra compress air and guarantee the lifting more stable and reliable.
Technical Features:
1, performance parameters – about 2~4 cycles / min
For example, efficiency according to bag size 150X250mm: 7 bags on one sealing bar*2 sealing in vacuum room one time* (2-4 times)/minute = 28~56 bags/minute.

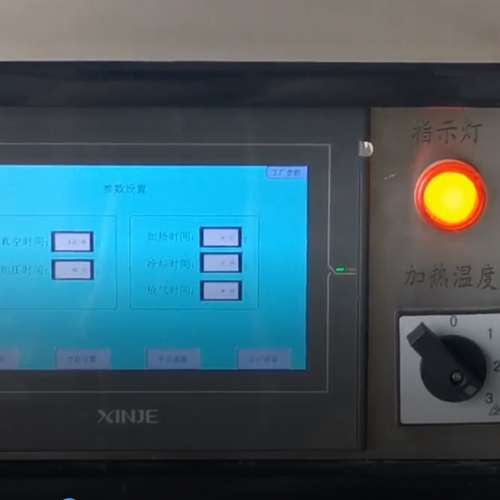

2, control panel with colour touch screen, menu multi-language can do customized local language. (The buyer shall provide a local language in contrast to English, except for a
special language that cannot be entered into the DELTA system)
3, double sealing bar in vacuum room and with separate adjustment of sealing parameters on each bar.
4, equip system for checking the health of electric components.
5, machine equipped with mobile wheel with brake and adjustable feet +/- 50 mm.
6, standard loading products right or left symmetrically (The vacuum chamber lifting guide post is usually on the opposite side
of the machine (one side). If it is necessary to design the machine to be absolutely symmetrical on both sides, the
manufacturer should be informed in advance)
7, in-feed conveyor belt with electronically adjustable speed.
8, conveyor suitable for food process and it is blue colour usually, white/green colour optional.
9, conveyor equip with mechanical connections for easy release, maintenance and cleaning.
10, it uses cam divider, accurate positioning and easy to adjust.
11, only one seal in the vacuum chamber can be used by parameter setting.
12, Flat/Two/M shape different sealing system on request (Two/M suitable for high thickness bags and/or aluminium bags)
13, sealing temperature can be adjustable (high/middle/low).
14, use air bag to control sealing pressure.
15, it is easy to set up HMI and operations and 20 storable working programs.
16, Multilanguage can be customized and Possibility to use password protection for working data.
17, Control of vacuum pump from machine – START and STOP.
18, Front and rear electromechanical START / STOP / EMERGENCY buttons.
